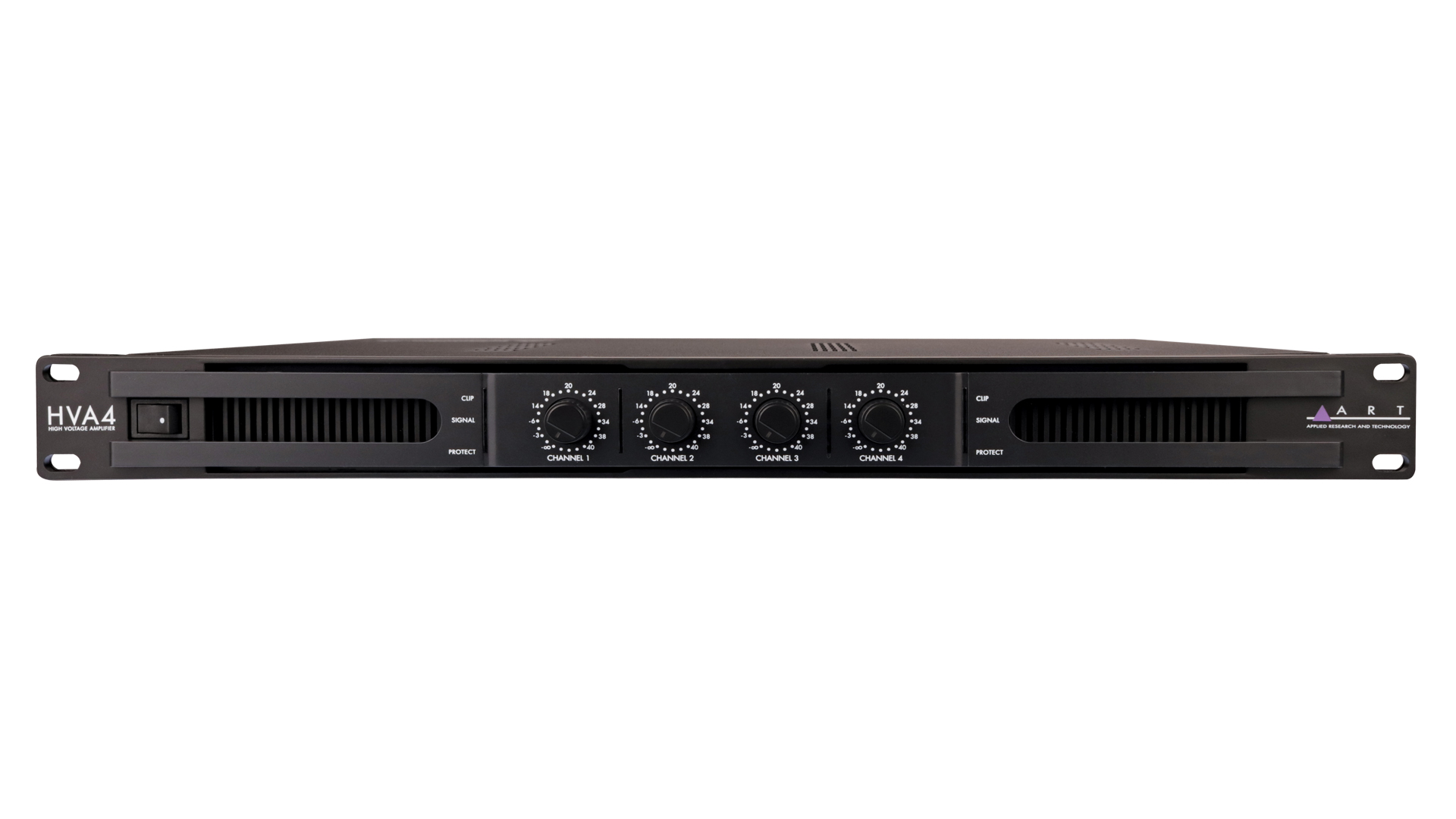

ART HVA4 4-Channel 300W 70V Amplifier
A 1U, 4-channel Class-D installation amplifier for larger 70V/100V distributed audio deployments, with per-channel gain control and remote disable/status functions.
| Channels | 4 |
|---|---|
| Power output | 300W (1 channel driven) / 270W per channel (all channels driven) |
| Line voltage | 70V / 100V (dip-switch selectable) |
| Amplifier class | Class-D |
| Rack format | 1U, 19-inch |
| Connectors | Euroblock input/output |
| Protection | Built-in limiter, short-circuit and thermal protection |
| Remote control | Remote output disable, priority/test trigger, remote failure status |
The HVA4 is the 4-channel sibling in ART’s HVA install-amplifier series, aimed at larger 70V/100V distributed audio jobs — multi-zone paging, retail background music, or a building with several independently controlled speaker zones — where a single 1U amp covering four zones keeps rack space and cabling manageable.
Beyond per-channel gain and the same limiter/short-circuit/thermal protection as the HVA1, the HVA4 adds remote output disable and remote failure status reporting, which matter in installs tied into a building automation or paging controller: a zone can be muted or its fault state read back without a technician on site. As with any 70V system, correct tap settings on downstream speakers are what determine how many devices a given channel can drive — the amplifier’s rated wattage per channel is the ceiling to design against, not a number to fill completely.
